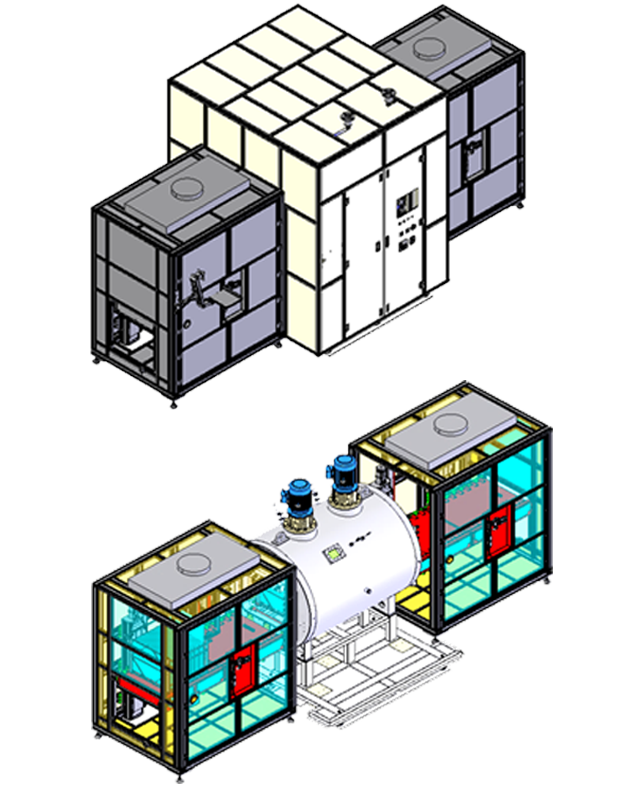

Summary
Remove fine bubbles and harden surfaces on substrates coated with CCL FILM
Process Performance & Productivity
- Effect: Minimize VOID and increase adhesion
- Work Size: 510mm(W) * 515mm(D) * 0.1~2.5T
- Pressure Range: Max. 10kg/㎠
- Design Pressure: 12kg/㎠
- Water pressure test pressure: 13kg/㎠
- Pressure Uniformity: ±0.1kg/㎠
- Temp. Range: Max. 220℃
- Design Temp: 240℃
- Temp. Rising: 4℃ /min
- Cooling: Radiator
- Temp. Cooling: 2.7℃ /min
- Temp. Uniformity: ±3℃ (Based on Monitoring 12 POINT , Based on Sample 30 POINT)
- Vacuum pump: 5Torr / 2min
